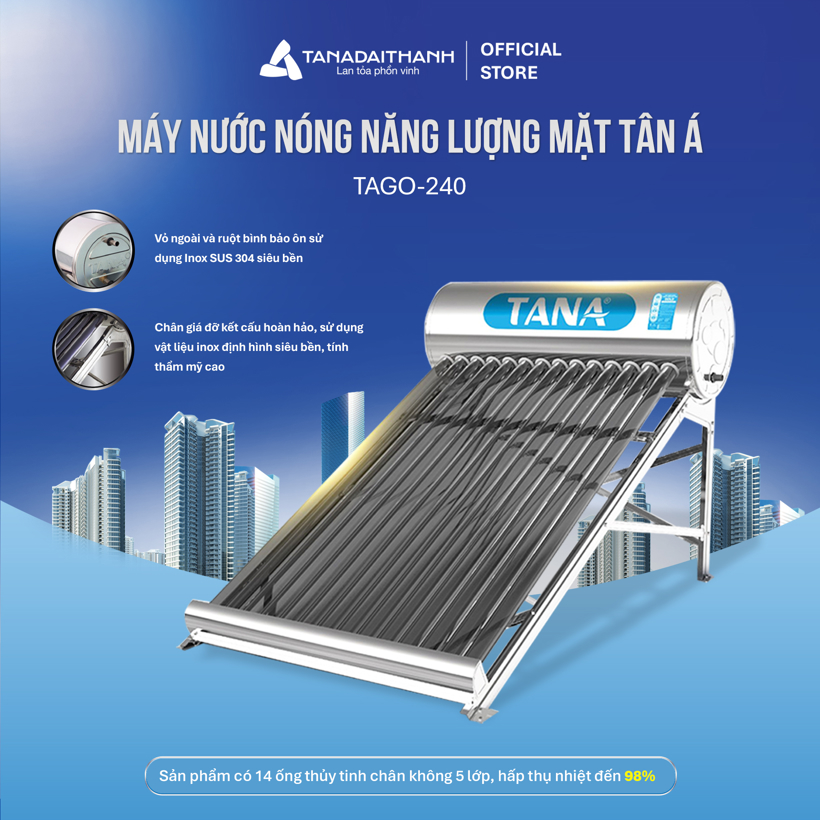

TA-GO 200L Solar Water Heater

Modern structure and advanced technology: Tan A TA-GO 58-21 solar water heater (200L) is equipped with an exclusive 5-layer vacuum glass tube system, which helps optimize the efficiency of heat absorption from sunlight, ensuring a continuous, safe and energy-saving hot water source. Buy and get a gift, always available at ECOONE
7,720,000 đ 8,600,000 đ -10%
Code: MNNNL
Quantity
Add to cart

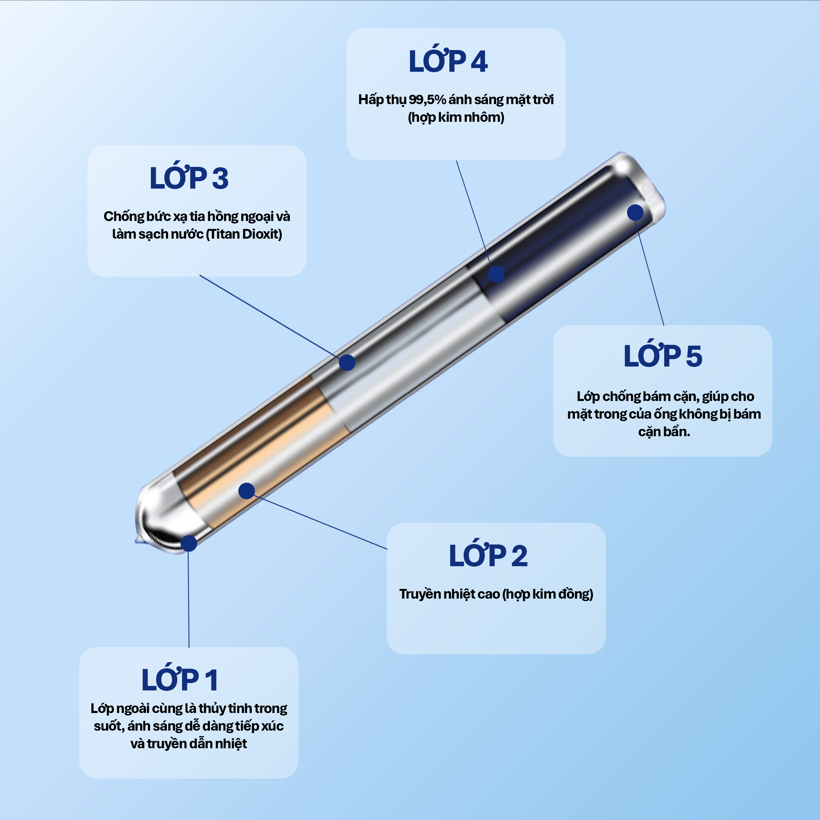

Structure of 5-layer vacuum glass tube:

Layer 1: Transparent glass - Increases heat conduction and facilitates easy light contact.
Layer 2: High heat transfer (copper alloy) - Highly effective in conducting heat into the system.
Layer 3: Anti-infrared radiation and water purification (Titanium Dioxide) - Eliminates harmful radiation, maintains better water quality.
Layer 4: Absorbs 99.5% of sunlight (aluminum alloy) - Optimizes heat absorption efficiency, helping the machine operate powerfully even in low light conditions.
Layer 5: Anti-scaling - Prevents scale formation, ensuring the life and quality of the tube.
Note:
You can choose between two types of energy tubes:

Vacuum tube: Suitable for standard tap water sources.
Oil tube: Suitable for water sources that are prone to scaling, containing high levels of calcium or magnesium.

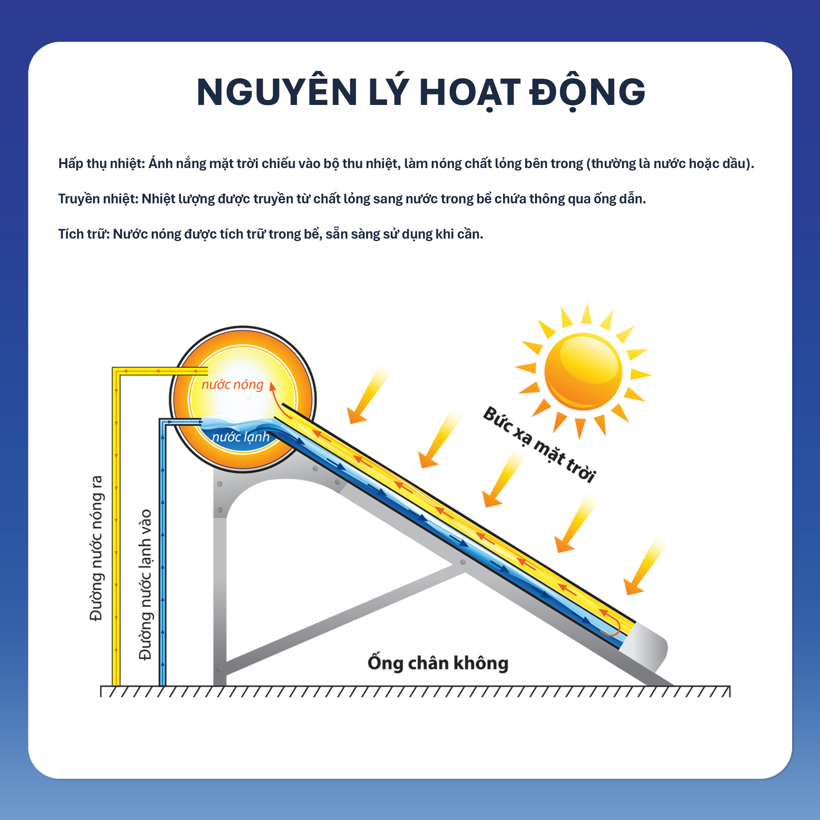

Operating principle:
Tan A TA-GO 58-21 water heater operates based on the principle of absorbing heat from the sun:

Sunlight is absorbed by the glass tube and heats the water inside.
Hot water is pushed into the insulated tank according to the principle of density difference (hot water is lighter than cold water).
This heat circulation process occurs continuously, helping the water in the tank to always be heated quickly and retain heat for a long time.

Outstanding features:

Insulated tank shell: Using SUS 304 stainless steel imported from Korea, anti-rust, durable over time.

Polyurethane insulation layer: 50mm thick, helps keep hot water up to 72 hours.
Stainless steel support legs: Designed to be sturdy, strong, suitable for all installation conditions (flat roof, sloping roof).
Automatic rolling welding technology: Ensures durability and high aesthetics.
Diamond enamel insulated tank: Anti-corrosion, superior durability, lifetime warranty.
Heat absorption efficiency up to 98%: Thanks to the advanced 5-layer vacuum glass tube system.
Environmentally friendly: Using green energy sources, minimizing greenhouse gas emissions and protecting the environment.
Maximum savings: Significantly reducing electricity bills thanks to using solar energy instead of electricity.

Technical specifications:

Capacity: 200L
Heat collector diameter: 58mm.
Heat collector length: 1,800mm.
Frame material: Rust-proof 304 stainless steel.
Heat retention time: Maximum 72 hours.
Warranty: 5 years genuine from Tan A Dai Thanh.. buy and get gifts, always available at ECOONE
